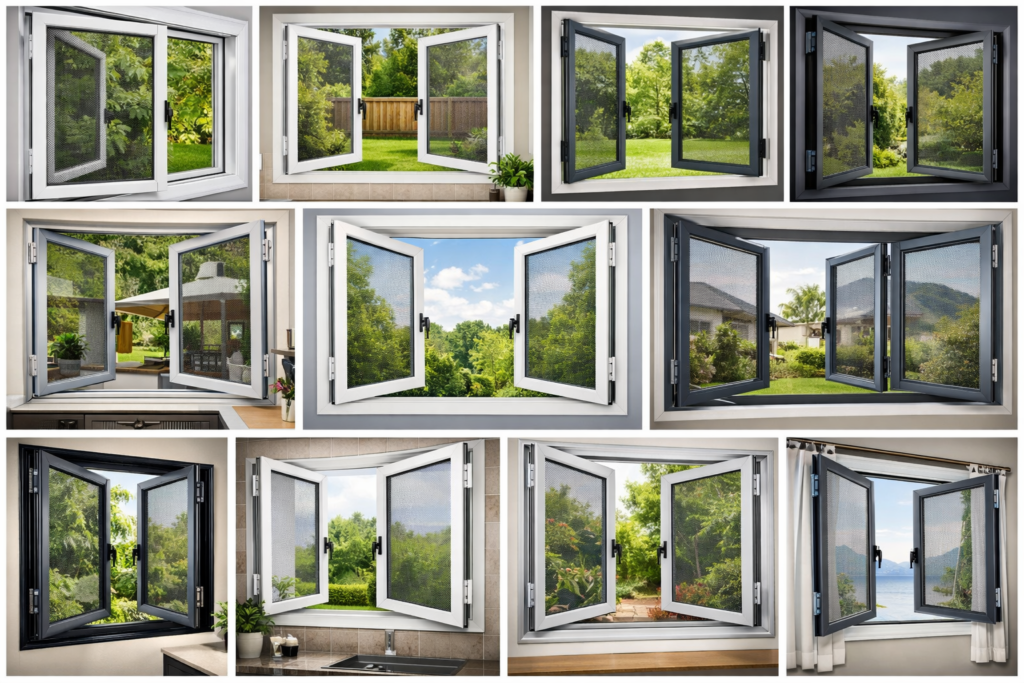

An Aluminium Hinged Mesh Window is a window system featuring an aluminium frame with a mesh panel attached using hinges, allowing it to open inward or outward like a door. It is primarily designed for ventilation, insect protection, and durability in residential and commercial spaces.

The mesh (aluminium, stainless steel, or fiberglass) acts as a barrier against insects, dust, and debris while maintaining airflow and visibility.

Overview

• Operates with side/top/bottom hinges

• Can be installed on existing windows or as a standalone unit

• Suitable for:

  • Homes

  • Offices

  • Hospitals

  • Industrial buildings

👉 These windows combine functionality + aesthetics + protection

Technical Specifications

Frame

• Material: Aluminium Alloy (commonly 6063-T5)

• Thickness: 1.0 mm – 2.0 mm

• Finish: Powder-coated / Anodized / PVDF

Mesh

• Material:

  • Aluminium mesh

  • Stainless steel mesh

  • Fiberglass mesh

• Mesh Size:

  • 14×14 / 16×16 / 18×16

• Wire Diameter: 0.20 mm – 0.33 mm

Dimensions

• Custom sizes available

• Typical max size:

  • 1500mm × 1000mm

Features

• Insect-proof

• Dust-proof

• Corrosion resistant

• Airflow optimized

• Waterproof & weather resistant

Materials Used

1. Frame

• Aluminium Alloy (6063, 5052, 3003 grades)

2. Mesh Options

• Aluminium alloy mesh

• Stainless steel (304 / 316)

• Fiberglass mesh

3. Accessories

• Hinges (SS or aluminium)

• Locking system

• Rubber gasket

• Fasteners

Manufacturing Process

Step-by-step:

1. Aluminium extraction & alloy preparation

2. Extrusion of aluminium profiles

3. Cutting & shaping

4. Mesh fabrication

   • Woven or perforated

5. Surface treatment

   • Powder coating / anodizing

6. Assembly

   • Frame + mesh + hardware

7. Quality inspection

   • Strength, finish, alignment

Installation Process

1. Site measurement

2. Frame alignment

3. Fixing using screws/anchors

4. Hinges attachment

5. Mesh panel fitting

6. Lock/handle installation

7. Final inspection & testing

Purpose

• Prevent insects (mosquitoes, flies)

• Allow fresh air circulation

• Improve indoor hygiene

• Enhance safety and ventilation

Advantages

• Lightweight but strong

• Corrosion resistant (ideal for humid climates)

• Long lifespan

• Easy maintenance

• Eco-friendly & recyclable

• Good visibility and airflow

Key Benefits

• Improved ventilation without pests

• Better indoor comfort

• Low maintenance cost

• Modern appearance

• Energy-efficient (reduces need for AC)

Color Options

Standard Colors:

• White

• Black

• Grey

• Silver

Premium Finishes:

• Wooden finish

• Bronze

• Champagne

• Custom RAL colors
