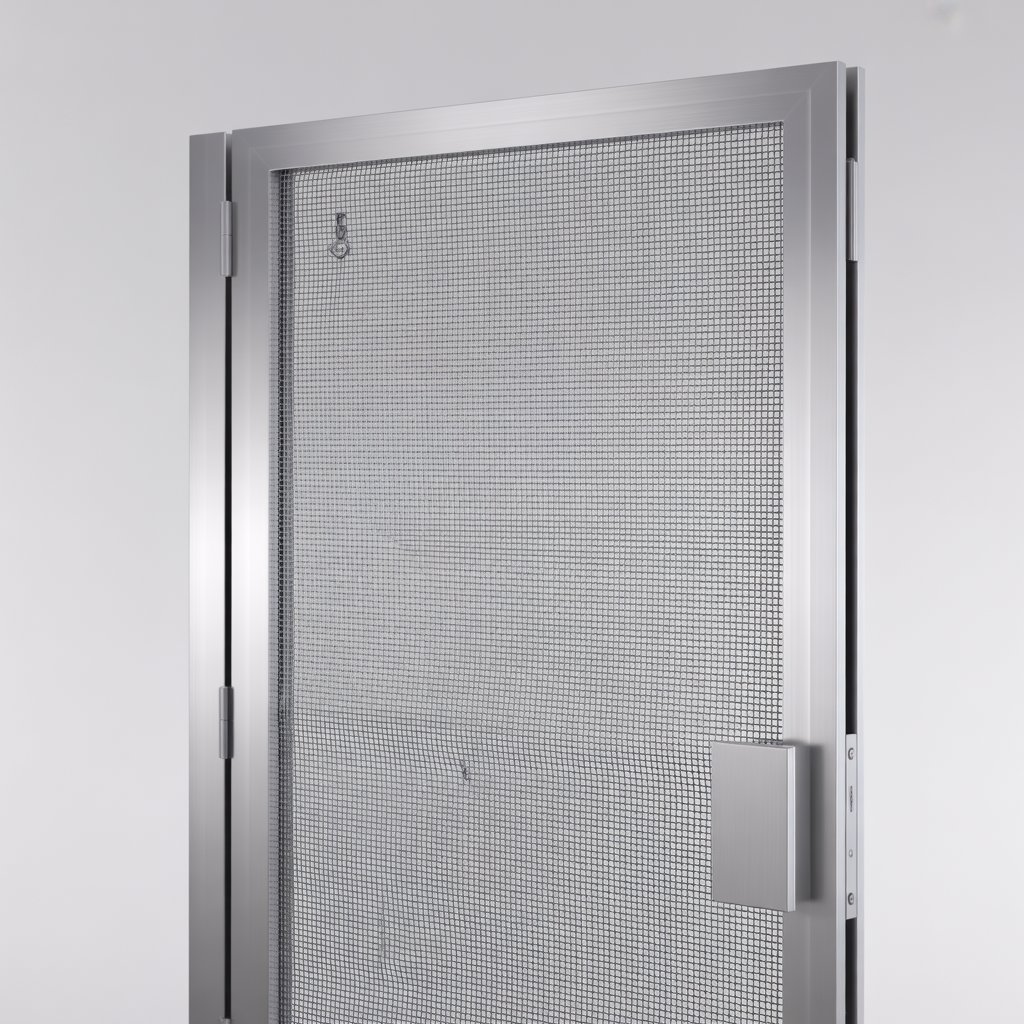

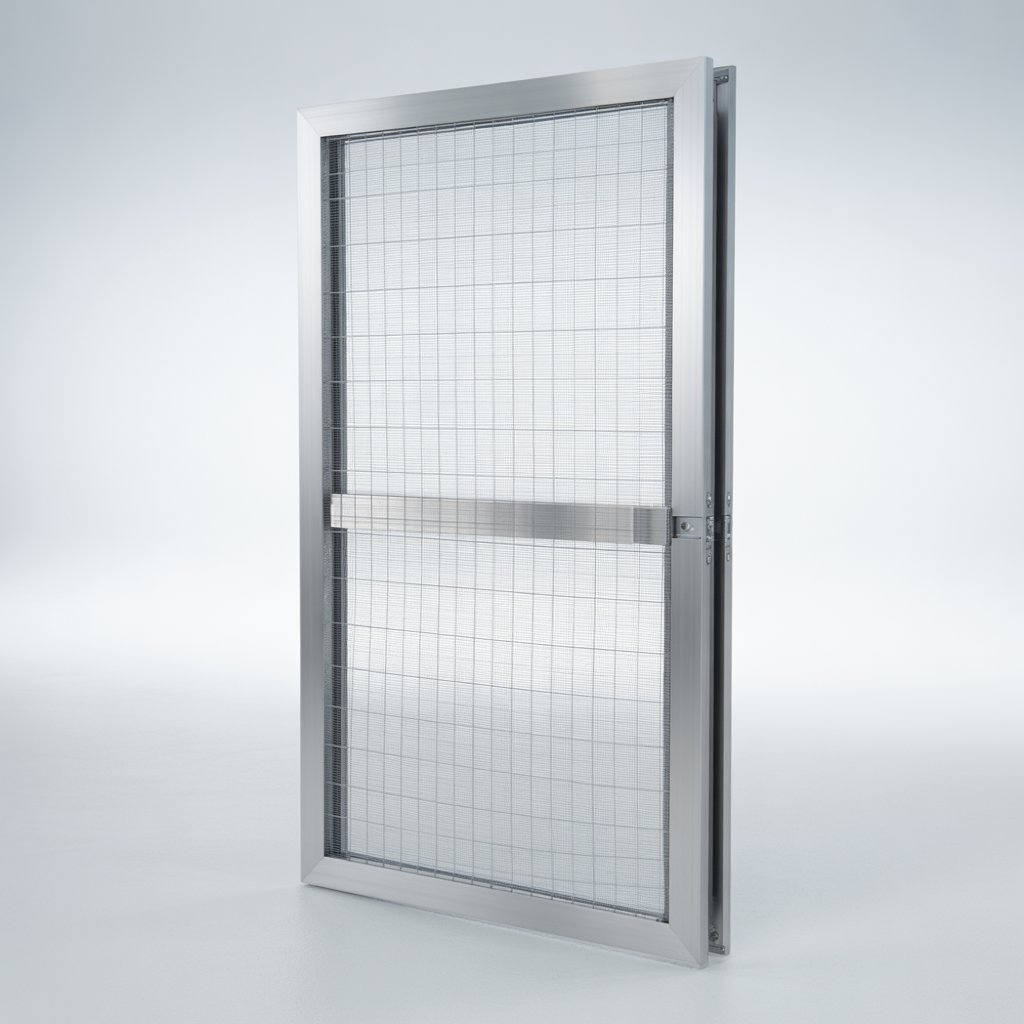

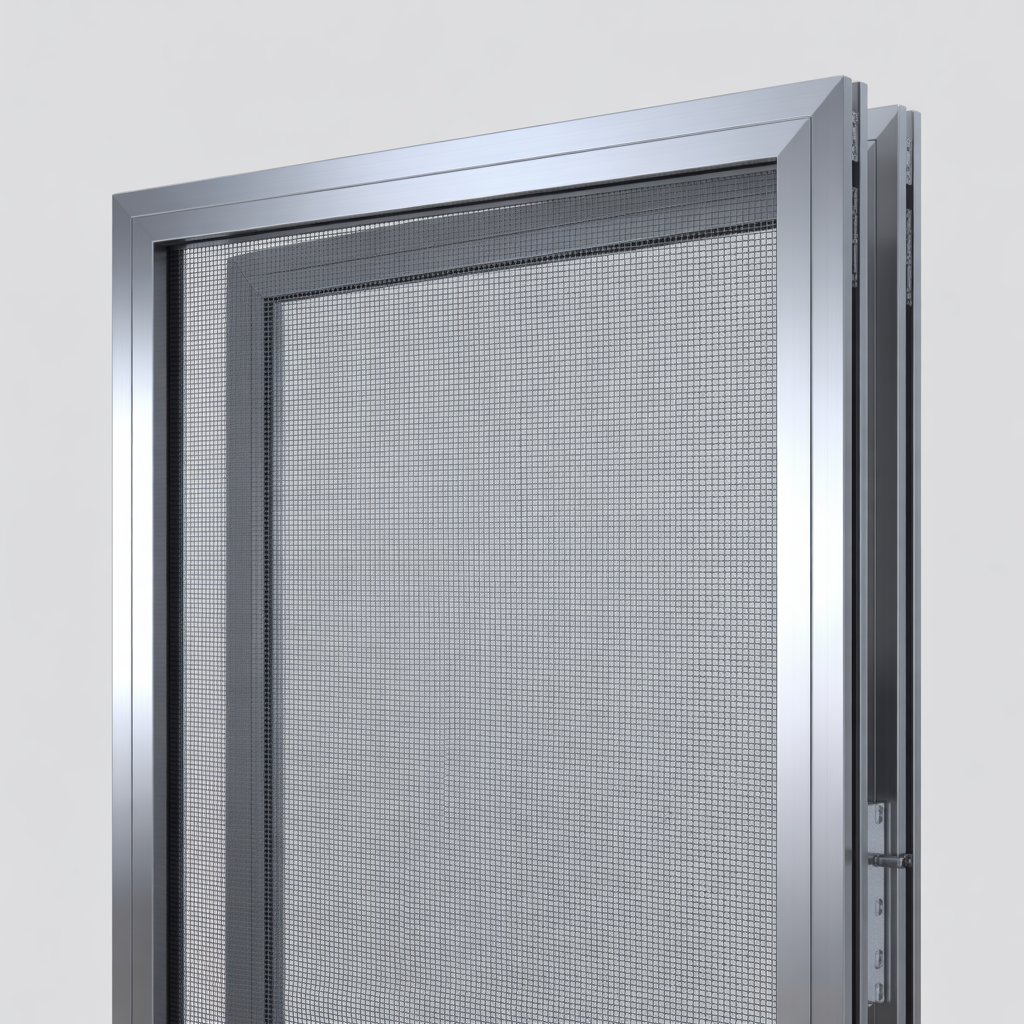

Aluminium Mosquito Mesh Door

Description

An Aluminium Mosquito Mesh Door is a protective door system designed to allow maximum airflow and natural light into interiors while blocking mosquitoes, flies, insects, and debris. It features a corrosion‑resistant aluminium frame fitted with a tightly woven mesh that prevents insects from entering living spaces, without obstructing visibility. These doors are ideal for homes, offices, balconies, patios, kitchens, hospitals, schools, and commercial spaces — particularly in regions with high mosquito prevalence. The elegant finish and sturdy construction offer both aesthetic appeal and functional performance.

---

✨ Key Features

• Superior Insect Protection: Fine mesh weave blocks mosquitoes, flies, gnats, and other small insects.

• Excellent Ventilation: Allows fresh air circulation while maintaining a comfortable indoor environment.

• Durable Aluminium Frame: Corrosion‑resistant and lightweight for long service life.

• Smooth Operation: Hinged, sliding, or retractable mechanisms for easy movement.

• Low Maintenance: Simple cleaning with a damp cloth or soft brush — no rusting or frequent upkeep required.

• Custom Fit: Manufactured to match exact door frame dimensions and opening styles.

• Stylish & Functional: Sleek profiles and colour‑coated finishes blend with modern architectural aesthetics.

---

⚙️ Technical Specifications

---

🧱 Materials Used

📌 1. Frame

• Aluminium Alloy Profiles – lightweight, rust‑proof, and high tensile strength.

• Surface finishes include anodised coating for scratch resistance and powder coating for aesthetic appeal and durability.

📌 2. Mesh

• Fiberglass Mesh: Most common; flexible, corrosion‑resistant, and ergonomic.

• Polyester Mesh: Stronger than fiberglass, good for pet‑resistant installations.

• Stainless Steel Mesh: Premium option; exceptionally durable and corrosion‑resistant.

📌 3. Hardware

• Hinges: Stainless steel or nylon‑coated for smooth action.

• Rollers (for sliding): Dual nylon rollers for effortless gliding.

• Magnetic Strip / Lock: Optional magnetic or latch‑bolt locking mechanisms.

---

🏭 Manufacturing Process

1. Material Preparation
   Raw aluminium profiles are cut to length as per design specs. Mesh materials are sourced in roll form and prepared for cutting.

2. Profile Processing

   • Cutting: Frames are precisely cut using mitre saws for accurate corner joints.

   • Surface Treatment: Profiles undergo anodising or powder‑coating for enhanced finish and corrosion resistance.

3. Mesh Cutting & Framing
   Mesh is measured and cut to size, ensuring overlap for secure fixing within the frame.

4. Assembly

   • Frames are joined with corner keys or screws.

   • Mesh is fitted inside the frame grooves and secured with rubber or PVC beading strips.

   • Hardware like hinges, rollers, and catches are installed.

5. Quality Checks
   Assembled doors are checked for smooth opening, mesh tension, and surface quality.

6. Packaging
   Finished doors are packed with protective films and foam for safe transportation.

---

🛠️ Installation Process

Tools Required

• Screwdriver / Drill

• Level

• Measuring Tape

• Screws & Anchors

• Rubber Mallet

Step‑by‑Step

1. Measure Opening
   Confirm the door frame opening dimensions (height × width × depth).

2. Prepare the Frame
   Place the aluminium mosquito mesh door frame inside the opening; use shims if needed for even spacing.

3. Level & Plumb
   Ensure the frame is perfectly vertical and horizontal using a spirit level.

4. Fixing the Frame

   • Drill holes through the frame into the wall/door jamb.

   • Insert wall anchors (if required).

   • Secure the frame with screws.

5. Install Door Panel

   • For hinged doors: Mount hinges and adjust swing.

   • For sliding doors: Fit rollers and adjust tracks.

   • For retractable doors: Mount cassette and secure guides.

6. Test Operation
   Open and close the door smoothly to ensure proper alignment.

7. Final Adjustments
   Check mesh tension and hardware tightness; adjust magnetic catches or locks if installed.

---

📌 Benefits at a Glance

✔ Keeps insects out without blocking airflow
✔ Durable & rust‑resistant aluminium body
✔ Multiple styles for different openings
✔ Easy to clean and maintain
✔ Enhances security and comfort
✔ Custom built to fit precise dimensions
